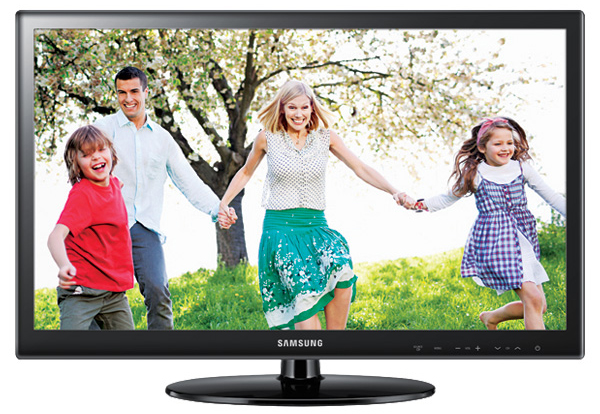

Samsung 22" Class 470 Series Edge-Lit Hospitality LED HDTV
A Premium LED Experience From The LED Industry Leader.
This product is no longer available, please contact us for a replacement.
Overview:
Your guests have high standards, and Samung's 470 Series can help you exceed their expectations with in-room displays that are changing the face of hospitality. This 22" display's energy-efficient design and eco-friendly features deliver world-class performance, complementing the feel of your rooms without costing the environment. And all while providing easy content access and management.
- LED Edge-Lit Full Array
- HD Content Decryption: Samsung Lynk™
- REACH Compliant: Customize Guest Room Marketing
- Energy Saving Mode (BLU Control)
Features
LED Edge-Lit Full Array
A leader in LED technology, Samsung's premium Edge Lit LED products put any hotel in the best light possible and deliver an unparalleled guest experience. Samsung offers a full range of energy-efficient flat panel TVs with best-in-class picture quality and value.
Samsung Lynk™
Samsung's software-based DRM technology is integrated into the entire Samsung 2012 Hotel TV line. Samsung Lynk offers highly reliable access to unlock premium HDTV content from content providers such as cable, satellite and VOD providers. Samsung's advanced Lynk DRM helps eliminate tampering HD premium content without disruptive service to the hotel guest.
Remote Enhanced Active Control for Hotels (REACH/Management Solution)
Used with coaxial-based solution designed to provide centralized TV controls, basic static content management capabilities and Interactive Program Guide (IPG). The Hotel Guest, in a (free-to-guest) hotel can experience picture and content such as: hotel information, local and in-room dinning, spa, meeting and events, local attractions and other simple guest convenience features. Property management will be able to update and change information on an easy Windows-based system.
Specifications:
| Samsung 22" Class 470 Series Edge-Lit Hospitality LED HDTV Specifications | |
|---|---|
| Video | |
| Screen Size (Diagonal) | 22" Screen Measured Diagonally |
| Auto Motion Rate | 120 |
| Native Resolution | 1920 x 1080 |
| Response Time (MS) | 5 mS |
| Runers | Analog, ATSC / Clear QAM Digital |
| Features | |
| Hotel Logo On-Screen Display | Yes |
| Closed Captioning | Yes |
| MultiCode Remote | Yes |
| Sirch | Yes |
| USB Cloning | Yes |
| Variable Sleep Timer | Yes |
| Hopitality Plug & Play (Easy Set-up) | Yes |
| Hotel Channel List | Yes |
| Security Screws & Stand Mount Kit | Yes |
| Anti-Theft Battery Cover | Yes |
| Auto TV On | Yes |
| Music Mode (Input: PC/AV/Component) | Yes |
| Alarm Key | Yes |
| Power On Status Setting | Yes |
| Connectshare (USB 2.0) | Movie |
| Music Mode Backlight On/Off | Yes |
| OSD Language | Yes |
| Connectivity | |
| HDMI | 2 Rear |
| USB (Side/Rear) | 1 Rear |
| Digital Audio Out (Optical) (Side/Rear) | 1 Rear |
| Component (Side/Rear) | 1 Rear |
| Remote Jack Pack | 1 |
| Composite in (AV) (Side/Rear) | 1 Rear |
| Hotel TV (Rj-12 IR Pass Through) | 1 |
| PC (D-Sub 15 Pin) | 1 Rear |
| PC Audio Jack | 1 Rear |
| Audio | |
| Speaker Type | Down Firing + Full Range |
| Dolby | Yes |
| Sound Effect System | SRS TheaterSound |
| Dimensions | |
| Product Depth | 1.57" |
| Product Size (W x H x D) Without Stand | 20.31" x 12.43" x 1.57" |
| Product Size (W x H x D) With Stand | 20.31" x 13.78" x 4.88" |
| Shipping Size (W x H x D) | 23.15" x 4.72" x 1.79" |
| Weight | |
| Product Weight Without Stand | 7.5 lb. |
| Product Weight With Stand (LB) | 7.7 lb. |
| Warranty | |
| Parts and Labor | 2 Years |
| Power | |
| Energy Saving Modes | 4 |
| Energy Star Certified | Yes |
| Power Supply | AC110-120V 60 Hz |
| Specifications | |
| TV System | ATSC/Clear QAM Cable |
Compare:
| Samsung 470/570 Series Hospitality TVs Comparison | |||||
|---|---|---|---|---|---|
| Model Number | HG22NA470BF | HG32NA470GF | HG39NA570CF | HG40NA570LF | HG46NA570LB |
| Display | |||||
| Backlight | Direct-lit LED | Direct-lit LED | Direct-lit LED | Direct-lit LED | Direct-lit LED |
| Screen Size (Diagonal) | 22" | 32" | 39" | 40" | 46" |
| HD/FHD | FHD | HD | FHD | FHD | FHD |
| Resolution | 1920 X 1,080 | 1366 x 768 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Video | |||||
| Picture Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine |
| Wide Color Enhancer Plus | Yes | Yes | Yes | Yes | Yes |
| Film Mode | Yes | Yes | Yes | Yes | Yes |
| Audio | |||||
| Dolby | Dolby Digital Plus / Dolby Pulse | Dolby Digital Plus / Dolby Pulse | Dolby Digital Plus / Dolby Pulse | Dolby Digital Plus / Dolby Pulse | Dolby Digital Plus / Dolby Pulse |
| DTS Studio Sound / DNSe+ / dts 2.0 | Yes | Yes | Yes | Yes | Yes |
| Surround (SRS) | SRS Theater Sound | SRS Theater Sound | SRS Theater Sound | SRS Theater Sound | SRS Theater Sound |
| Auto Volume Leveler | Yes | Yes | Yes | Yes | Yes |
| Speaker Type | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range |
| Sound Output (RMS) | 3Wx2 | 10Wx2 | 10Wx2 | 10Wx2 | 10Wx2 |
| Features | |||||
| ConnectShare™ (USB 2.0) | Movie | Movie | Movie | Movie | Movie |
| OSD Language | English, French, Spanish | English, French, Spanish | English, French, Spanish | English, French, Spanish | English, French, Spanish |
| Digital Noise Filter | Yes | Yes | Yes | Yes | Yes |
| HDMI 1.4 A / Return Ch. Support (ARC) | Yes | Yes | Yes | Yes | Yes |
| Anynet+ (HDMI-CEC) | Yes | Yes | Yes | Yes | Yes |
| Auto Channel Search | Yes | Yes | Yes | Yes | Yes |
| Auto Power Off | Yes | Yes | Yes | Yes | Yes |
| Caption (Subtitle) | Yes | Yes | Yes | Yes | Yes |
| Wake-up Timer | Yes | Yes | Yes | Yes | Yes |
| Game Mode | Yes | Yes | Yes | Yes | Yes |
| Picture-In-Picture | 1 Tuner PIP | 1 Tuner PIP | 1 Tuner PIP | 1 Tuner PIP | 1 Tuner PIP |
| Sleep Timer | Yes | Yes | Yes | Yes | Yes |
| Hospitality Features | |||||
| Samsung LYNK™ REACH Server Compatibility | Yes | Yes | Yes | Yes | Yes |
| Hospitality Plug&Play (Easy Set-up) | Yes | Yes | Yes | Yes | Yes |
| RJ 12 / IR Pass Through | Yes | Yes | Yes | Yes | Yes |
| Power on Mode | Yes | Yes | Yes | Yes | Yes |
| USB Cloning | Yes | Yes | Yes | Yes | Yes |
| Logo Display with Time Out Setting (BMP/Movie) | Yes | Yes | Yes | Yes | Yes |
| Welcome Message | Yes | Yes | Yes | Yes | Yes |
| Music Mode (Input : PC/AV/Component/HDMI) | Yes | Yes | Yes | Yes | Yes |
| Music Mode BackLight on/off | Yes | Yes | Yes | Yes | Yes |
| Auto Source Mode | Yes | Yes | Yes | Yes | Yes |
| Energy Saving Mode(BLU control) | Yes | Yes | Yes | Yes | Yes |
| Software Clock | Yes | Yes | Yes | Yes | Yes |
| Multi Code Remote Control | Yes | Yes | Yes | Yes | Yes |
| Screwed Remote Battery Cover | Yes | Yes | Yes | Yes | Yes |
| Security Mode | No | Yes | Yes | Yes | Yes |
| Smoovie Compatibility | Yes | Yes | Yes | Yes | Yes |
| Sound bar compatibility | Yes | Yes | Yes | Yes | Yes |
| Samsung LYNK™ DRM | Yes | Yes | Yes | Yes | Yes |
| Input & Output | |||||
| HDMI (Side/Rear) | 0/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| USB (Side/Rear) | 0/1 | 1/0 | 1/0 | 1/0 | 1/0 |
| Composite In (AV) (Side/Rear) | 0/1 (Common Use for Component Y) | 1/1 (Common Use for Component Y) | 1/1 (Common Use for Component Y) | 1/1 (Common Use for Component Y) | 0/1 (Common Use for Component Y) |
| Ethernet (LAN) (Side/Rear) | No | No | No | No | No |
| Audio Out (Mini Jack) (Side/Rear) | No | 1 | 1 | 1 | 1 |
| RF In (Terrestrial/Cable input) (Side/Rear) | 1 | 1 | 1 | 1 | 1 |
| RS232C | Yes | Yes | Yes | Yes | Yes |
| RJ12 for External Control (Side/Rear) | 1 | 1 | 1 | 1 | 1 |
| RJP Jack (Remote Jack Pack) (Side/Rear) | 1 | 1 | 1 | 1 | 1 |
| System | |||||
| DTV Tuner | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM |
| Analog Tuner | Yes | Yes | Yes | Yes | Yes |
| Design | |||||
| Front Color | Black | Black | Black | Black | Black |
| Stand Type | Round | Square | Square | Square | Square |
| Swivel (Left/Right) | No | 20/60/90 | 20/60/90 | 20/60/90 | 20/60/90 |
| Dimensions (W x H x D) | |||||
| Set Size with Stand (mm) / (inches) | 515.87 x 350.01 x 121.92 / 20.31" x 13.78" x 4.88" | 738.8 x 500.8 x 191.7 / 29.09" x 19.42" x 7.55" | 895.9 x 589.3 x 227.6 / 35.27" x 23.20" x 8.96" | 927.6 x 607.0 x 227.6 / 36.52" x 23.90" x 8.96" | 1059.8 x 681.2 x 227.6 / 41.72" x 26.82" x 8.96" |
| Set Size without Stand (mm) / (inches) | 515.87 x 350.01 x 39.88 / 20.31" x 13.78" x 1.57" | 738.8 x 436.7 x 93.2 / 29.09" x 17.19" x 3.67" | 895.9 x 532.5 x 94.1/ 35.27" x 20.96" x 3.70" | 927.6 x 551.0 x 93.0 / 36.52" x 21.69" x 3.66" | 1059.8 x 625.6 x 94.3 / 41.72" x 24.63" x 3.71" |
| Carton Dimensions | |||||
| (H x L x W) (mm) / (inches) | 588.01 x 119.88 x 45.47 / 23.15" x 4.72" x 1.79" | 902.0 x 530.0 x 162.0 / 35.51" x 20.87" x 6.38" | 1074.0 x 165.0 x 618.0 / 42.28" x 24.33" x 6.49" | 1104.0 x 641.0 x 175.0 / 43.46" x 25.24" x 6.89" | 1237.0 x 723.0 x 175.0 / 48.70" x 28.46" x 6.89" |
| Weight | |||||
| Set Weight with Stand (kg / lbs.) | 3.5 / 7.7 | 7.8 / 10.6 | 10.6 / 23.4 | 11.9 / 26.2 | 15.4 / 33.9 |
| Set Weight without Stand (kg / lbs.) | 3.4 / 7.5 | 5.8 / 9.2 | 7.8 / 17.2 | 9.0 / 19.8 | 12.5 / 27.5 |
| Package Weight (kg / lbs.) | 4.4 / 4.7 | 9.6 / 21.2 | 12.6 / 27.8 | 14.27 / 31.5 | 18.15 / 40.1 |
| VESA Mounting | |||||
| Dimensions (mm) | 75 x 75 | 200 x 200 | 200 x 200 | 200 x 200 | 400 x 400 |
| Screw Size | M4 | M6 | M6 | M6 | M8 |
| Power | |||||
| Power Supply | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz |
| Multi Voltage | AC110-220V | AC110-220V | AC110-220V | AC110-220V | AC110-220V |
| UPC | |||||
| UPC | 036725237742 | 036725237735 | 887276007908 | 0372537803 | 036725237870 |
| Accessory | |||||
| Remote Controller Model | TM1050 | TM1050 | TM1050 | TM1050 | TM1050 |
| Battery (for Remote Control) | Yes | Yes | Yes | Yes | Yes |
| Mini Wall Mount Support | No | Yes | Yes | Yes | Yes |
| Vesa Wall Mount Support | Yes | Yes | Yes | Yes | Yes |
| Power Cable (5 ft.) | Yes | Yes | Yes | Yes | Yes |
| Data Cable | Yes | Yes | Yes | Yes | Yes |
| Quick Install Guide | Yes | Yes | Yes | Yes | Yes |
| Security Screws | Yes | Yes | Yes | Yes | Yes |
| Stand Mount Kit | No | Yes | Yes | Yes | Yes |
Documentation:
Download the Samsung 470/570 Series Hospitality TVs Datasheet (.PDF)
