Samsung 28" 690 Series Premium Slim Direct-Lit LED Hospitality TV
SMART TVs with H-Browser Compatibility and AllShare® Cast.

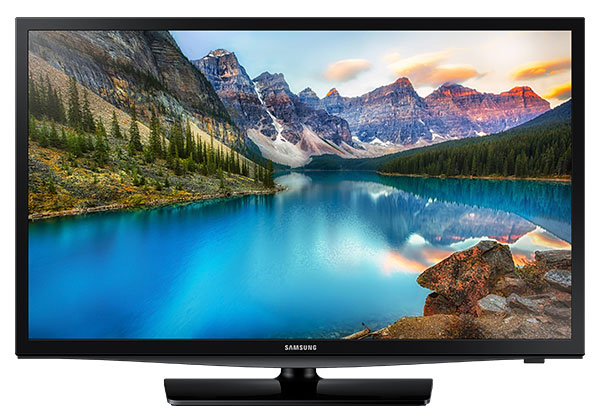

Samsung 28" 690 Series Premium Slim Direct-Lit LED Hospitality TV

This product is no longer available, please contact us for a replacement.

Overview:

Our 690 Series Hospitality TVs deliver a complete platform for a premium in-room experience with an at-home feel. With these SMART TVs, guests can watch movies and TV shows from streaming services, check Facebook, Twitter and Skype to stay connected, and even push content from their mobile devices to the big screen.

  • Slim Direct-Lit LED Provides a Great Picture with Uniform Brightness and Energy Savings
  • SMART TVs with H-Browser Compatibility and AllShare® Cast
  • Conveniently Manage Content with Samsung LYNK® SINC 3.1 and Samsung LYNK REACH® 3.1
  • Utilize a Host of Features for Versatile Needs

Features

Premium Slim Direct-Lit LED

Direct-lit LED technology provides the brilliance and energy savings advantages of LED technology, along with the uniform brightness typical of CCFL displays. And it's possible to upgrade your rooms to LED technology for a cost comparable to CCFL technology.

Samsung LYNK REACH® 3.1 Content Management Solution

The Samsung LYNK REACH® 3.1 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).

Samsung LYNK® SINC 3.1 Interactive Content Management System

This IP-based content management system communicates between our TVs and hotel property management software. Customize entertainment with EPG (Electronic Program Guide), Weather API, Flight Info, Real Time Messaging and a Hospitality Widget Library (Facebook, Twitter, AccuWeather, Google Maps).

H-Browser Compatibility

Built on the HTML5 standard with Flash® support, H-Browser is a true SMART TV solution offered on our 690 Series through partnerships with certified system integrators. It features both free and video on demand (VOD) content, and is able to interface directly with the head end without a set top box.

Mobile Device Integration Using AllShare® Cast

Seamlessly share content across your DLNA connected Samsung devices including WIDI without the need for a network cable or a connecting device. AllShare® Cast allows screen mirroring and video streaming to enable seamless content sharing and mobile device integration.

A Host of Features

Features include: LYNK DRM, Pro:Idiom® DRM, BT Music, Home Menu, RJ12 IR PASS, Volume Limiters, Front Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control.

Specifications:


Samsung 28" 690 Series Premium Slim Direct-Lit LED Hospitality TV Specifications
Display
HD/FHD FHD
Design
Type Slim Direct-Lit LED
Video
Screen Size (Diagonal) 28"
Film Mode Yes
Native Resolution 1366 x 768
Picture Engine HyperReal
Pro:Idiom Yes
Tuners ASTC/Clear QAM
Features
Apps Platform Samsung Apps
Closed Captioning Yes
Music Mode (Input: PC/AV/Component) Yes
OSD Language English, Spanish, French
Hotel Logo On-Screen Display Yes
ConnectShare (USB 2.0) Yes
Music Mode Backlight On/Off Yes
Security Screws & Stand Mount Kit Security Screws
USB Cloning Yes
Auto Channel Search Yes
Multi Code Remote TM1240
Auto Power Off Yes
Power On Status Setting Yes
Hospitality Plug & Play (Easy Set-up) Yes
Hotel Channel List Yes
Game Mode Yes
Hospitality Features
Samsung Lynk Reach Yes
Logo Display With Time Out Setting (BMP/Movie) Yes
Clock Back Up Supply Yes
Sound Bar Compatibility Yes
Samsung Lynk Reach Server Compatibility Yes
Welcome Message Yes
Software Clock Yes
Samsung Lynk Sinc Compatibility Yes
Auto Source Mode Yes
Multi Code Remote Control Yes
Power On Mode Yes
Energy Saving Mode (Blu Control) Yes
Smoovie Compatbility Yes

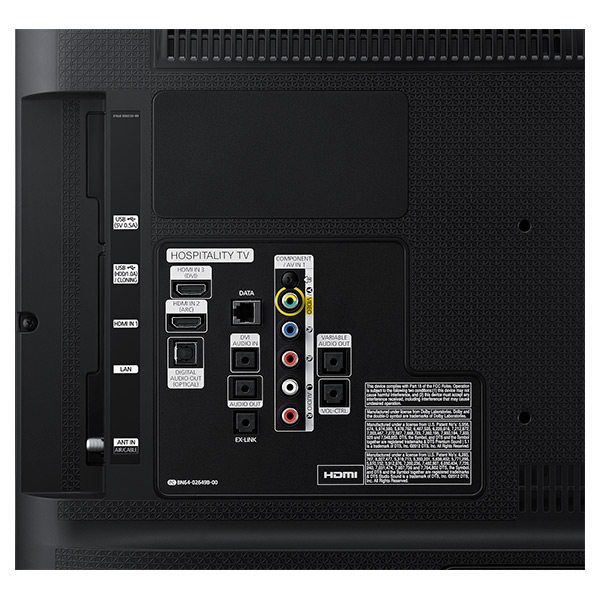

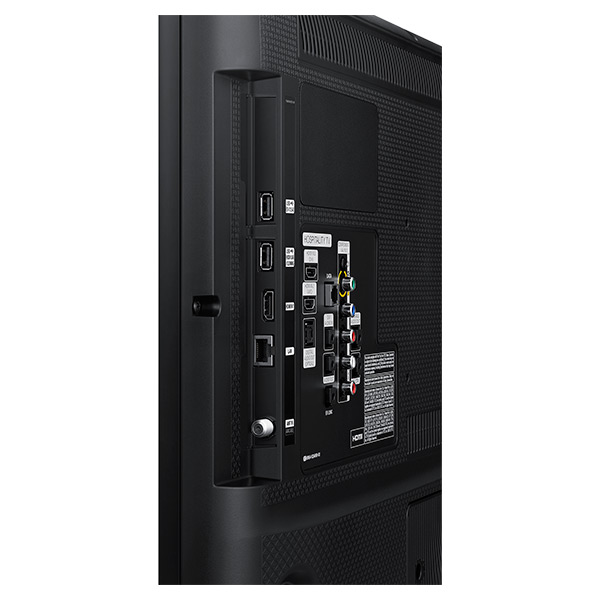

Connectivity
HDMI 3
USB (Side/Rear) 2/0
Component (Side/Rear) 0/1
Audio Out (Mini Jack) Side/Rear) 0/1
Composite In (AV) (Side/Rear) 0/1 (Common Use for Component Y)
Digital Audio Out (Optical) (Side/Rear) 0/1
Ethernet (RJ45/LAN) 1
Audio
Speaker Type 2CH(Down Firing + Base Reflex)
Dolby Dolby Digital Plus
DTS Premium Sound/DTS Premium Sound 5.1 DTS Premium sound 5.1
Sound Output (RMS) 10W(L:5W, R:5W)
Dimensions
Product Size (W x H x D) Without Stand 25.33" x 15.61" x 2.48"
Product Size (W x H x D) With Stand 25.33" x 17.13" x 6.43"
DRM Type
Samsung Lynk DRM Yes
Pro: IDiom DRM Yes
IP Verimatix DRM Yes
Power
Energy Saving Modes Yes
Power Supply AC110-120V 60Hz
