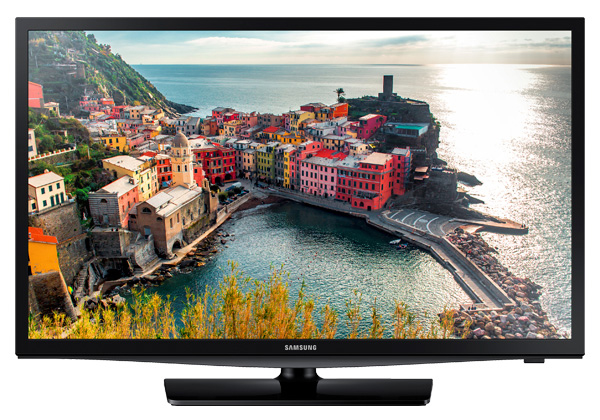

Samsung 32" 673 Series Slim Direct-Lit LED Healthcare TV
A Premium LED Experience From The LED Industry Leader.
This product is no longer available, please contact us for a replacement.
Overview:
Discover advanced TV solutions designed specifically for today's healthcare industry. Samsung's Healthcare TVs have been manufactured with hospital-specific features, such as an interchangeable pillow speaker interface and compatibility with many interactive patient education systems. Facility managers can benefit from up to 50% less energy use with Slim Direct-Lit LED and an on-site warranty program.
- UL-Listed for Hospital Use
- Universal Pillow Speaker Interface
- Samsung LYNK™ REACH 3.0 Content Management Solution
- Pro:Idiom™ Decoding for an Expanded Lineup of HD Channels
Featurs
UL-Listed for Hospital Use
Samsung Healthcare TVs are specifically engineered to meet the stringent requirements for use in hospital environments.
Universal Pillow Speaker Interface
An easy-to-use interface for multiple styles of pillow speakers is built right into the TV. This eliminates the hassle of lost remotes and changing batteries.
Samsung LYNK™ REACH 3.0 Content Management Solution
The Samsung LYNK REACH 3.0 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).
Specifications:
| Samsung 32" 673 Series Slim Direct-Lit LED Healthcare TV Specifications | |
|---|---|
| Display | |
| Backlight | Slim Direct-Lit LED |
| Screen Size (Diagonal) | 32" |
| HD/FHD | HD |
| Resolution | 1368 x 768 |
| Video | |
| Picture Engine | HyperReal Engine |
| Micro Dimming | N/A |
| Wide Color Enhancer Plus | Yes |
| Auto Motion Plus | N/A |
| Film Mode | Yes |
| Audio | |
| Dolby | Dolby MS10 |
| DTS Studio Sound / DNSe+ | DTS Studio Sound |
| DTS Premium Sound / DTS Premium Sound 5.1 | DTS Premium Sound 5.1 |
| 3D Sound | N/A |
| Auto Volume Leveler | Yes |
| Speaker Type | Down Firing + Full Range |
| Sound Output (RMS) | 10W x 2 |
| Woofer | N/A |
| Variable Speaker Output | 4W (Mono, 8Ω) |
| Features | |
| Smart Hub | No |
| Apps | No |
| Web Browser | No |
| Samsung SMART View | No |
| Wireless LAN Built-in | No |
| AllShare - Contents Sharing | No |
| AllShare - Screen Mirroring | No |
| ConnectShare™ (USB 2.0) | Movie |
| Wake On LAN | No |
| Soft AP | No |
| USB HID Support | No |
| OSD Language | English, Spanish, French |
| Digital Clean View | Yes |
| HDMI 1.4 A / Return Ch. Support (ARC) | Yes |
| Auto Channel Search | Yes |
| Auto Power Off | No |
| EPG | Yes |
| Caption (Subtitle) | Yes |
| Wake-up Timer | Yes |
| Game Mode | Yes |
| Picture-In-Picture | Yes |
| Sleep Timer | Yes |
| Healthcare Features | |
| Hospitality Home Menu | No |
| Samsung LYNK™ REACH Server Compatibility | Yes |
| Samsung LYNK™ SINC Compatibility | No |
| H.Browser Compatibility | No |
| Hospitality Plug&Play (Easy Set-up) | Yes |
| RJ 12 / IR Pass Through | Yes |
| Power on Mode | Yes |
| USB Cloning | Yes |
| Logo Display with Time Out Setting (BMP/Movie) | Yes |
| Welcome Message | Yes |
| Music Mode (Input : PC/AV/Component/HDMI) | Yes |
| Music Mode BackLight on/off | Yes |
| Auto Source Mode | Yes |
| Energy Saving Mode(BLU control) | Yes |
| Clock Back Up Supply | Yes |
| Software Clock | Yes |
| Multi Code Remote Control | Yes |
| Smoovie Compatibility | Yes |
| Samsung LYNK™ DRM | Yes |
| Pro:Idiom | Yes |
| Input & Output | |
| HDMI (Side/Rear) | 2/2 |
| USB (Side/Rear) | 1/0 |
| Component In (Y/Pb/Pr) (Side/Rear) | 0/1 |
| Composite In (AV) (Side/Rear) | 0/1 (Common Use for Component Y) |
| Ethernet (LAN) (Side/Rear) | N/A |
| Digital Audio Out (Optical) (Side/Rear) | 0/1 |
| Audio Out (Mini Jack) (Side/Rear) | 1/0 |
| RF In (Terrestrial/Cable input) (Side/Rear) | 0/1 |
| RS232C | Yes Common Use for Component RJ12) |
| Pillow Speaker Jack (Side/Rear) | Yes |
| Variable Audio Out (Side/Rear) | No |
| Variable Audio Out Volume Control (Side/Rear) | No |
| RJ12 for External Control (Side/Rear) | 0/1 |
| RJP Jack (Remote Jack Pack) (Side/Rear) | 0/1 |
| System | |
| DTV Tuner | ATSC / Clear QAM |
| Analog Tuner | Yes |
| Design | |
| Front Color | Black |
| Stand Type | N/A |
| Swivel (Left/Right) | N/A |
| Dimensions | |
| Set Dimension (WxHxD) (mm / inches) | 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" |
| Package Dimension (WxHxD) (mm / inches) | 899 x 506 x 113 / 35.39" x 19.92" x 4.45" |
| Weight | |
| Set Weight (kg / lbs.) | 5 / 11.02 lbs. |
| Package Weight (kg / lbs.) | 6.6 / 14.55 lbs. |
| VESA | |
| VESA Mount (mm) | 200 x 200 |
| VESA Screw Size | M8 |
| Power | |
| Power Supply (V) | AC110-120V 60Hz |
| Multi Voltage | AC110-220V |
| UPC | |
| UPC | 887276684406 |
| Accessory | |
| Remote Controller Model | N/A |
| Battery (for Remote Control) | N/A |
| Mini Wall Mount Support | Yes |
| Vesa Wall Mount Support | Yes |
| Power Cable (Hospital Grade) | Yes |
| Quick Install Guide | Yes |
Compare:
| Samsung Healthcare Series TVs Comparison | ||||
|---|---|---|---|---|
| Model Number | HG28NC673AF | HG32NB673BF | HG32NC693DF | HG40NC693DF |
| Display | ||||
| Backlight | Slim Direct-Lit LED | Slim Direct-Lit LED | Slim Direct-Lit LED | Slim Direct-Lit LED |
| Screen Size (Diagonal) | 28" | 32" | 32" | 40" |
| HD/FHD | HD | HD | FHD | FHD |
| Resolution | 1366 x 768 | 1368 x 768 | 1920 x 1080 | 1920 x 1080 |
| Video | ||||
| Picture Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine | HyperReal Engine |
| Micro Dimming | N/A | N/A | N/A | N/A |
| Wide Color Enhancer Plus | Yes | Yes | Yes | Yes |
| Auto Motion Plus | N/A | N/A | N/A | N/A |
| Film Mode | Yes | Yes | Yes | Yes |
| Audio | ||||
| Dolby | Dolby MS10 | Dolby MS10 | Dolby MS10 | Dolby MS10 |
| DTS Studio Sound / DNSe+ | DTS Studio Sound | DTS Studio Sound | DTS Studio Sound | DTS Studio Sound |
| DTS Premium Sound / DTS Premium Sound 5.1 | DTS Premium Sound 5.1 | DTS Premium Sound 5.1 | DTS Premium Sound 5.1 | DTS Premium Sound 5.1 |
| 3D Sound | N/A | N/A | N/A | N/A |
| Auto Volume Leveler | Yes | Yes | Yes | Yes |
| Speaker Type | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range | Down Firing + Full Range |
| Sound Output (RMS) | 5W x 2 | 10W x 2 | 10W x 2 | 10W x 2 |
| Woofer | N/A | N/A | N/A | N/A |
| Variable Speaker Output | 4W (Mono, 8Ω) | 4W (Mono, 8Ω) | 4W (Mono, 8Ω) | 4W (Mono, 8Ω) |
| Features | ||||
| Smart Hub | No | No | Yes | Yes |
| Apps | No | No | Yes | Yes |
| Web Browser | No | No | Yes | Yes |
| Samsung SMART View | No | No | Yes | Yes |
| Wireless LAN Built-in | No | No | Yes | Yes |
| AllShare - Contents Sharing | No | No | Yes | Yes |
| AllShare - Screen Mirroring | No | No | Yes | Yes |
| ConnectShare™ (USB 2.0) | Movie | Movie | Movie | Movie |
| Wake On LAN | No | No | Yes | Yes |
| Soft AP | No | No | Yes | Yes |
| USB HID Support | No | No | Yes | Yes |
| OSD Language | English, Spanish, French | English, Spanish, French | English, Spanish, French | English, Spanish, French |
| Digital Clean View | Yes | Yes | Yes | Yes |
| HDMI 1.4 A / Return Ch. Support (ARC) | Yes | Yes | Yes | Yes |
| Auto Channel Search | Yes | Yes | Yes | Yes |
| Auto Power Off | Yes | No | Yes | Yes |
| EPG | No | Yes | Yes | Yes |
| Caption (Subtitle) | Yes | Yes | Yes | Yes |
| Wake-up Timer | Yes | Yes | Yes | Yes |
| Game Mode | Yes | Yes | Yes | Yes |
| Picture-In-Picture | Yes | Yes | Yes | Yes |
| Sleep Timer | Yes | Yes | Yes | Yes |
| Healthcare Features | ||||
| Hospitality Home Menu | Yes | No | Yes | Yes |
| Samsung LYNK™ REACH Server Compatibility | Yes | Yes | Yes | Yes |
| Samsung LYNK™ SINC Compatibility | No | No | Yes | Yes |
| H.Browser Compatibility | No | No | Yes | Yes |
| Hospitality Plug&Play (Easy Set-up) | Yes | Yes | Yes | Yes |
| RJ 12 / IR Pass Through | Yes | Yes | Yes | Yes |
| Power on Mode | Yes | Yes | Yes | Yes |
| USB Cloning | Yes | Yes | Yes | Yes |
| Logo Display with Time Out Setting (BMP/Movie) | Yes | Yes | Yes | Yes |
| Welcome Message | Yes | Yes | Yes | Yes |
| Music Mode (Input : PC/AV/Component/HDMI) | Yes | Yes | Yes | Yes |
| Music Mode BackLight on/off | Yes | Yes | Yes | Yes |
| Auto Source Mode | Yes | Yes | Yes | Yes |
| Energy Saving Mode(BLU control) | Yes | Yes | Yes | Yes |
| Clock Back Up Supply | Yes | Yes | Yes | Yes |
| Software Clock | Yes | Yes | Yes | Yes |
| Multi Code Remote Control | Yes | Yes | Yes | Yes |
| Smoovie Compatibility | Yes | Yes | Yes | Yes |
| Samsung LYNK™ DRM | Yes | Yes | Yes | Yes |
| Pro:Idiom | Yes | Yes | Yes | Yes |
| Input & Output | ||||
| HDMI (Side/Rear) | 2/1 | 2/2 | 2/2 | 2/2 |
| USB (Side/Rear) | 1/0 | 1/0 | 1/0 | 1/0 |
| Component In (Y/Pb/Pr) (Side/Rear) | No | 0/1 | 0/1 | 0/1 |
| Composite In (AV) (Side/Rear) | 1/0 (Common Use for Component Y) | 0/1 (Common Use for Component Y) | 0/1 (Common Use for Component Y) | 0/1 (Common Use for Component Y) |
| Ethernet (LAN) (Side/Rear) | N/A | N/A | N/A | 1/0 |
| Digital Audio Out (Optical) (Side/Rear) | No | 0/1 | 0/1 | 0/1 |
| Audio Out (Mini Jack) (Side/Rear) | 0/1 | 1/0 | 1/0 | 1/0 |
| RF In (Terrestrial/Cable input) (Side/Rear) | 0/1 | 0/1 | 0/1 | 0/1 |
| RS232C | Yes Common Use for Component RJ12) | Yes Common Use for Component RJ12) | Yes Common Use for Component RJ12) | Yes Common Use for Component RJ12) |
| Pillow Speaker Jack (Side/Rear) | Yes | Yes | Yes | Yes |
| Variable Audio Out (Side/Rear) | No | No | No | No |
| Variable Audio Out Volume Control (Side/Rear) | No | No | No | No |
| RJ12 for External Control (Side/Rear) | 0/1 | 0/1 | 0/1 | 0/1 |
| RJP Jack (Remote Jack Pack) (Side/Rear) | 0/1 | 0/1 | 0/1 | 0/1 |
| System | ||||
| DTV Tuner | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM | ATSC / Clear QAM |
| Analog Tuner | Yes | Yes | Yes | Yes |
| Design | ||||
| Front Color | Black | Black | Black | Black |
| Stand Type | N/A | N/A | N/A | N/A |
| Swivel (Left/Right) | N/A | N/A | N/A | N/A |
| Dimensions | ||||
| Set Dimension (WxHxD) (mm / inches) | 643.4 x 396.5 x 62.9 / 25.33" x 15.61" x 2.48" | 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" | 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" | 906.6 x 532.9 x 65.1 / 35.69" x 20.98" x 2.56" |
| Package Dimension (WxHxD) (mm / inches) | 815 x 463 x 108 / 32.09" x 18.23" x 4.25" | 899 x 506 x 113 / 35.39" x 19.92" x 4.45" | 899 x 506 x 113 / 35.39" x 19.92" x 4.45" | 1100 x 616 x 120 / 43.31" x 24.25" x 4.72" |
| Weight | ||||
| Set Weight (kg / lbs.) | 3.7 / 8.16 lbs. | 5 / 11.02 lbs. | 5 / 11.02 lbs. | 7.8 / 17.19 lbs. |
| Package Weight (kg / lbs.) | 4.8 / 10.6 lbs. | 6.6 / 14.55 lbs. | 6.6 / 14.55 lbs. | 9.4 / 20.72 lbs. |
| VESA | ||||
| VESA Mount (mm) | 100 x 100 | 200 x 200 | 200 x 200 | 200 x 200 |
| VESA Screw Size | M4 | M8 | M8 | M8 |
| Power | ||||
| Power Supply (V) | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz | AC110-120V 60Hz |
| Multi Voltage | AC110-220V | AC110-220V | AC110-220V | AC110-220V |
| UPC | ||||
| UPC | 887276689166 | 887276684406 | 887276684406 | 887276684413 |
| Accessory | ||||
| Remote Controller Model | N/A | N/A | N/A | N/A |
| Battery (for Remote Control) | N/A | N/A | N/A | N/A |
| Mini Wall Mount Support | No | Yes | Yes | Yes |
| Vesa Wall Mount Support | Yes | Yes | Yes | Yes |
| Power Cable (Hospital Grade) | Yes | Yes | Yes | Yes |
| Quick Install Guide | Yes | Yes | Yes | Yes |
Images:
Documentation:
Download the Samsung Healthcare Series TVs Datasheet (.PDF)
