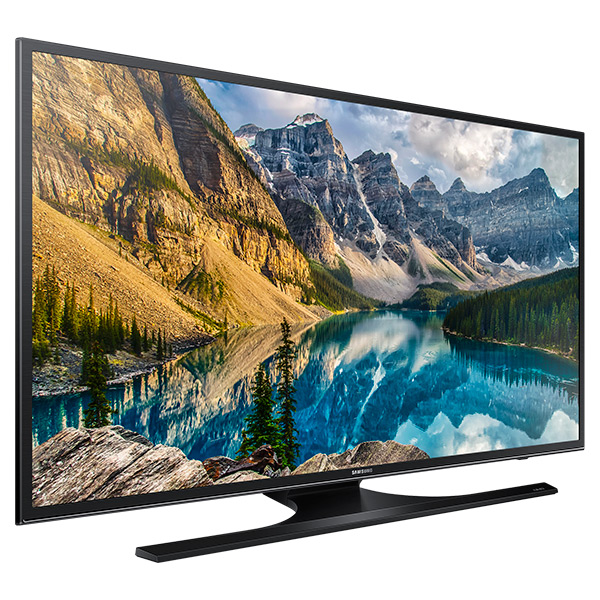

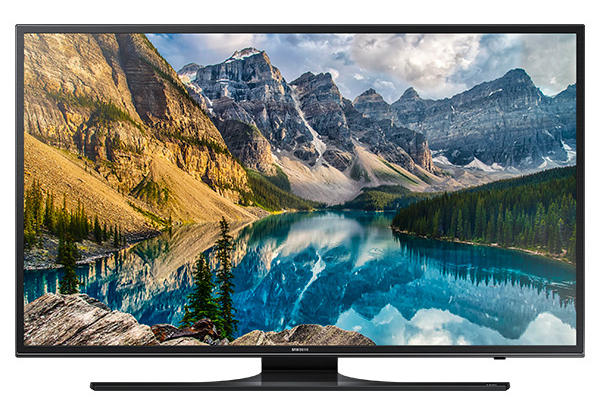

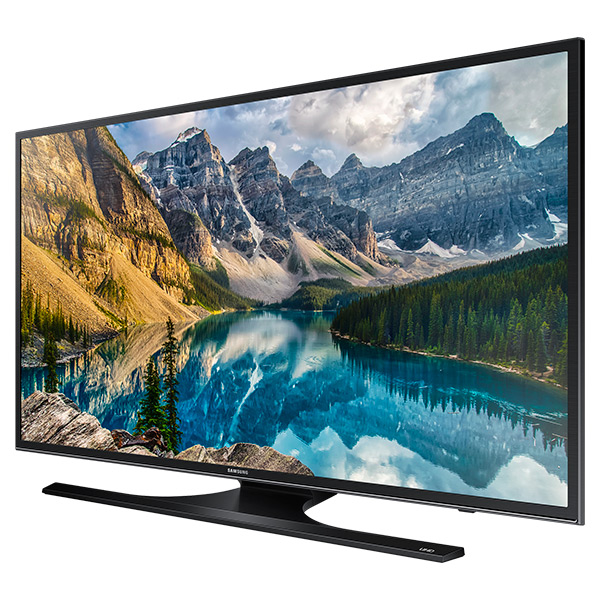

Samsung 40" 690U Series Premium 4K UHD Slim Direct-Lit LED Hospitality TV
4K UHD and Premium Slim Direct-Lit LED Technology for an Outstanding Picture with Energy Savings.

Samsung 40" 690U Series Premium 4K UHD Slim Direct-Lit LED Hospitality TV

This product is no longer available, please contact us for a replacement.

Overview:

Our 690U Series Hospitality TVs feature 4K UHD (Ultra High Definition) resolution to provide an outstanding in-room viewing experience. With these SMART TVs, guests can watch movies and TV shows from streaming services, check Facebook, Twitter and Skype to stay connected, and even push content from their mobile devices to the big screen in dazzling quality.

  • 4K UHD and Premium Slim Direct-Lit LED Technology for an Outstanding Picture with Energy Savings
  • SMART TVs with H-Browser Compatibility and AllShare® Cast
  • Conveniently Manage Content with Samsung LYNK® SINC 3.1 and Samsung LYNK REACH® 3.1
  • Versatile Viewing Thanks to a Swivel Stand that Rotates 90° in Both Directions with Optional Stops

Features

Premium Slim Direct-Lit LED

Direct-lit LED technology provides the brilliance and energy savings advantages of LED technology, along with the uniform brightness typical of CCFL displays. And it's possible to upgrade your rooms to LED technology for a cost comparable to CCFL technology.

Samsung LYNK REACH® 3.1 Content Management Solution

The Samsung LYNK REACH® 3.1 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).

Samsung LYNK® SINC 3.1 Interactive Content Management System

This IP-based content management system communicates between our TVs and hotel property management software. Customize entertainment with EPG (Electronic Program Guide), Weather API, Flight Info, Real Time Messaging and a Hospitality Widget Library (Facebook, Twitter, AccuWeather, Google Maps).

H-Browser Compatibility

Built on the HTML5 standard with Flash® support, H-Browser is a true SMART TV solution offered on our 690U Series through partnerships with certified system integrators. It features both free and video on demand (VOD) content, and is able to interface directly with the head end without a set top box.

Mobile Device Integration Using AllShare® Cast

Seamlessly share content across your DLNA connected Samsung devices including WIDI without the need for a network cable or a connecting device. AllShare® Cast allows screen mirroring and video streaming to enable seamless content sharing and mobile device integration.

A Host of Features and Swivel Stand

Features include: LYNK DRM, Pro:Idiom® DRM, BT Music, Home Menu, RJ12 IR PASS, Volume Limiters, Front Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, and Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control. A swivel stand rotates 90° in both directions with optional 20, 60 and 90 degree stops.

Specifications:


Samsung 40" 690U Series Premium 4K UHD Slim Direct-Lit LED Hospitality TV Specifications
Display
HD/FHD UHD
Design
Type Slim Direct-Lit LED
Video
Screen Size (Diagonal) 40"
Film Mode Yes
Native Resolution 3,840 x 2,160
Picture Engine UHD Up-Scaling
Tuners ASTC/Clear QAM
Auto Motion Rate Auto Motion Plus
Features
Apps Platform Yes
Auto Channel Search Yes
Hotel Channel List Yes
USB Cloning Yes
Hospitality Plug & Play (Easy Set-up) Yes
OSD Language English, Spanish, French
Closed Captioning Yes
Music Mode (Input: PC/AV/Component) Yes
Auto Power Off Yes
ConnectShare (USB 2.0) Yes
Music Mode Backlight On/Off Yes
Game Mode Yes
Hospitality Features
Samsung Lynk Reach Yes
Logo Display With Time Out Setting (BMP/Movie) Yes
Clock Back Up Supply Yes
Smoovie Compatibility Yes
Samsung Lynk Reach Server Compatbility Yes
Welcome Message Yes
Software Clock Yes
Sound Bar Compatibility Yes
Samsung Lynk Sinc Compatbility Yes
Auto Source Mode Yes
Multi Code Remote Control Yes (TM1240)
Power On Mode Yes
Energy Saving Mode (Blu Control) Yes
Screwed Remote Battery Cover Yes
Connectivity
HDMI 3
USB (Side/Rear) 2/0
Digital Audio Out (Optical) (Side/Rear) 0/1
Component (Side/Rear) 0/1
Hotel TV (RJ-12 IR Pass Through) Yes
Composite In (AV) (Side/Rear) 1 (Common Use for Component Y)
PC Audio Jack 1
Ethernet (RJ45/LAN) 1
Audio Out (Mini Jack) (Side/Rear) 0/1
Audio
Speaker Type 2CH(Down Firing + Base Reflex)
Sound Output (RMS) 20W(L:10W, R:10W)
Dolby Dolby Digital Plus (MS11)
DTS Studio Sound/DNSE+ DTS Studio Sound
DTS Premium Sound/DTS Premium Sound 5.1 DTS Premium sound 5.1
Dimensions
Product Size (W x H x D) Without Stand 36.13" x 21.09" x 1.95"
Product Size (W x H x D) With Stand 36.13" x 22.92" x 9.51"
DRM Type
Samsung Lynk DRM Yes
Pro:Idiom DRM Yes
Power
Power Supply AC110-120V 60Hz
