Our 690 Series Hospitality TVs deliver a complete platform for a premium in-room experience with an at-home feel. With these SMART TVs, guests can watch movies and TV shows from streaming services, check Facebook, Twitter and Skype to stay connected, and even push content from their mobile devices to the big screen.
Premium Slim Direct-Lit LED
Direct-lit LED technology provides the brilliance and energy savings advantages of LED technology, along with the uniform brightness typical of CCFL displays. And it's possible to upgrade your rooms to LED technology for a cost comparable to CCFL technology.
Samsung LYNK REACH® 3.1 Content Management Solution
The Samsung LYNK REACH® 3.1 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).
Samsung LYNK® SINC 3.1 Interactive Content Management System
This IP-based content management system communicates between our TVs and hotel property management software. Customize entertainment with EPG (Electronic Program Guide), Weather API, Flight Info, Real Time Messaging and a Hospitality Widget Library (Facebook, Twitter, AccuWeather, Google Maps).
Built on the HTML5 standard with Flash® support, H-Browser is a true SMART TV solution offered on our 690 Series through partnerships with certified system integrators. It features both free and video on demand (VOD) content, and is able to interface directly with the head end without a set top box.
Mobile Device Integration Using AllShare® Cast
Seamlessly share content across your DLNA connected Samsung devices including WIDI without the need for a network cable or a connecting device. AllShare® Cast allows screen mirroring and video streaming to enable seamless content sharing and mobile device integration.
A Host of Features and Swivel Stand
Features include: LYNK DRM, Pro:Idiom® DRM, BT Music, Home Menu, RJ12 IR PASS, Volume Limiters, Front Panel Lock-out, Menu Display Lock-out, Hotel Custom Logo/Welcome Message, Channel List Guide, Channel Re-mapping, Remote Jack Pack (RJP) Priority, USB Cloning and Anti-Theft Battery Cover Remote Control. A swivel stand rotates 90° in both directions with optional 20, 60 and 90 degree stops.
|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Specifications
|Slim Direct-Lit LED
|Screen Size (Diagonal)
|1920 x 1080
|Music Mode (Input: PC/AV/Componet)
|English, Spanish, French
|Hotel Logo On-Screen Display
|ConnectShare (USB 2.0)
|Music Mode Backlight On/Off
|Security Screws & Stand Mount Kit
|Auto Channel Search
|Multi Code Remote
|Auto Power Off
|Power On Status Setting
|Hospitality Plug & Play (Easy Set-up)
|Hotel Channel List
|Samsung Lynk Reach
|Logo Display With Time Out Setting (BMP/Movie)
|Clock Back Up Supply
|Sound Bar Compatibility
|Samsung Lynk Reach Server Compatiblity
|Ssamsung Lynk Sinc Compatibility
|Auto Source Mode
|Multi Code Remote Control
|Power On Mode
|Energy Saving Mode (Blu Control)
|Audio OUt (Mini Jack) (Side/Rear)
|Ciomposite In (AV) (Side/Rear)
|0/1 (Common Use for Component Y)
|Digital Audio Out (Optical) (Side/Rear)
|2CH(Down Firing + Base Reflex)
|Dolby Digital Plus
|DTS Premium Sound/DTS Premium Sound 5.1
|DTS Premium sound 5.1
|Sound Output (RMS)
|Product Size (W x H x D) Without Stand
|42.33" x 24.71" x 2.58"
|Product Size (W x H X D) With Stand
|42.33" x 26.52" x 8.92"
|Samsung Lynk DRM
|IP Verimatix DRM
|Energy Saving Modes

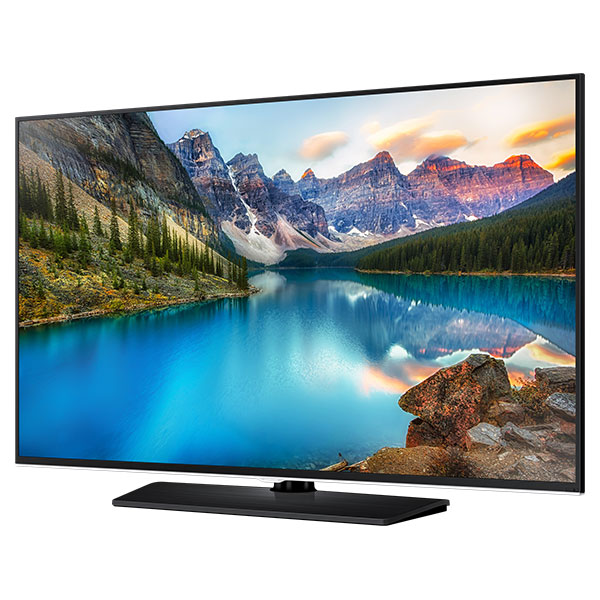

|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Right Angle View

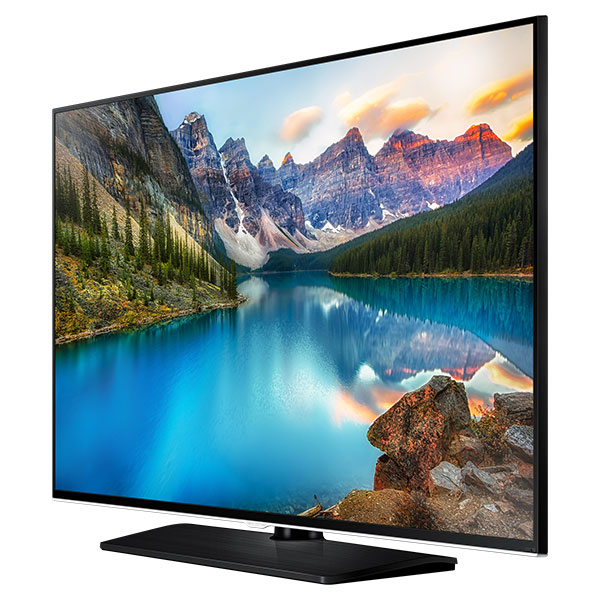

|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Right Side View

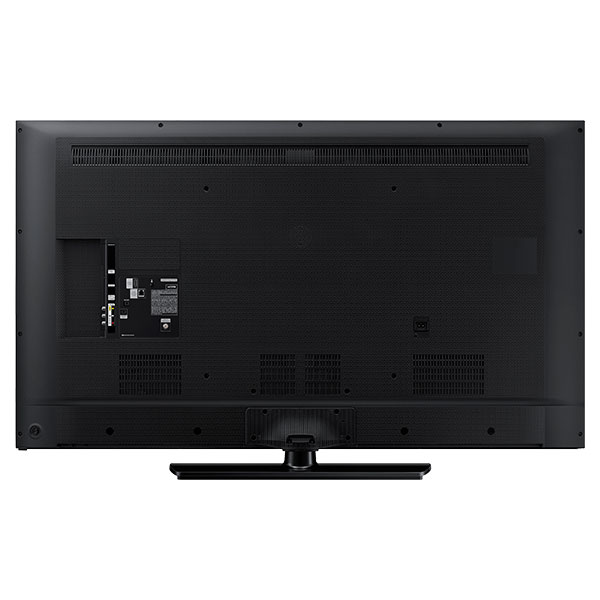

|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Back View

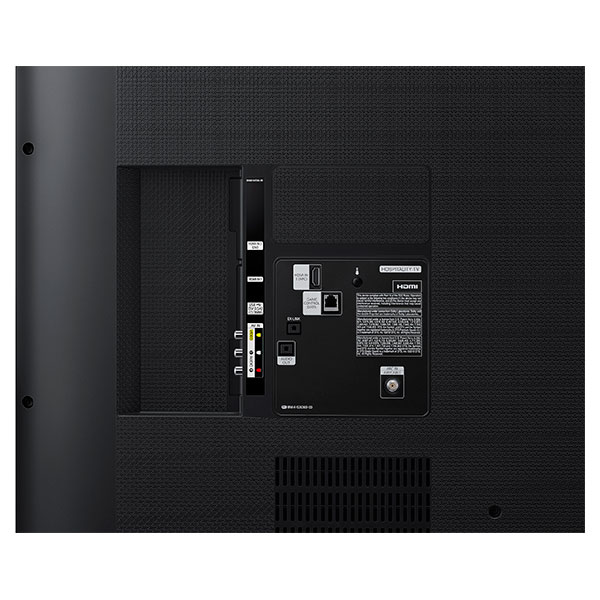

|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Back Detail View

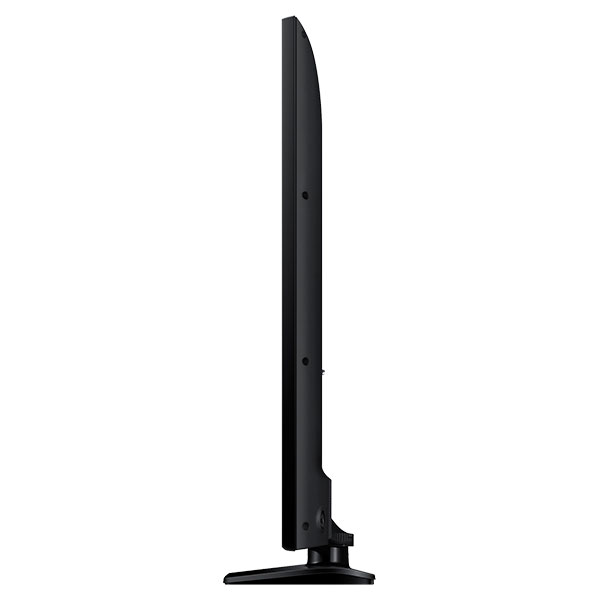

|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Side View

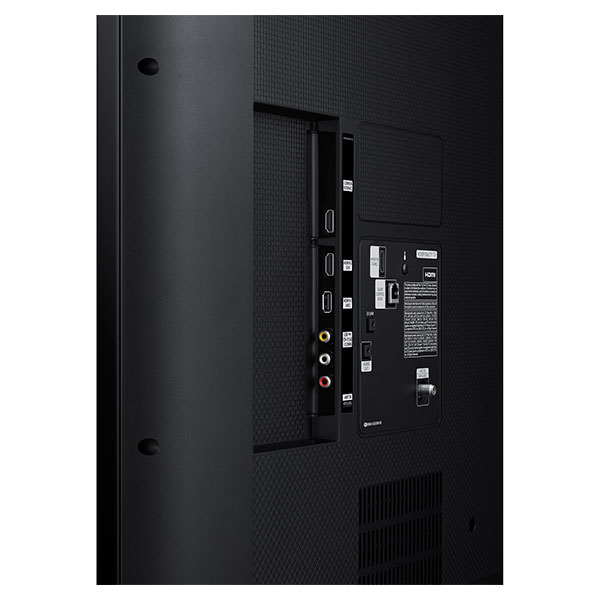

|Samsung 48" 690 Series Premium Slim Direct-Lit LED Hospitality TV Side Detail View
