Samsung TC241W - 24& TC Series Thin Client Display
Simplify the Desktop without Compromise.
This product is no longer available, please contact us for a replacement.
Overview:
Samsung's TC241W TC Series Thin Client Display allows businesses to centralize and secure sensitive information in a corporate cloud. This way, your user environment will be easier to deploy, maintain and manage while being less vulnerable to security risks. Advanced encoding and decoding delivers the highest quality images practical for graphic design (CAD) and 3D rendering on the 24" display.
- Centralized, Secure Data
- Integrated Cloud Connectivity
- Simplify the Desktop without Compromise
- Superior Image Quality
Features
Centralized, Secure Data
The TC Series Thin Client Displays are an ideal way to migrate seamlessly to a business cloud using desktop virtualization technology. Centralized, secure data increases productivity, strengthens protection of sensitive information and streamlines IT maintenance and costs.
Integrated Cloud Connectivity
Enable advanced client-server communication protocols such as ICA/HDX for accessing Citrix XenApp/XenDesktop, RDP/RemoteFX for accessing Microsoft Remote Desktop Services (RDS), VMware View for accessing a virtual desktop or Internet Explorer TCP/IP (IE) for accessing the internet.
Simplify the Desktop without Compromise
With Windows Embedded Standard 7, add local software requisites to drive web cams or local printers/scanners. Install unified communication software, virtual meeting rooms or Voice over IP (VoIP). Access business media on the web, and add Office viewers or browser plug-ins.
Superior Image Quality
LED-backlit LCD screens utilize 40% less power consumption than CCFL backlighting. Advanced encoding and decoding delivers high resolution in both still images and high-speed video.
Thin, Clutter-Free Design

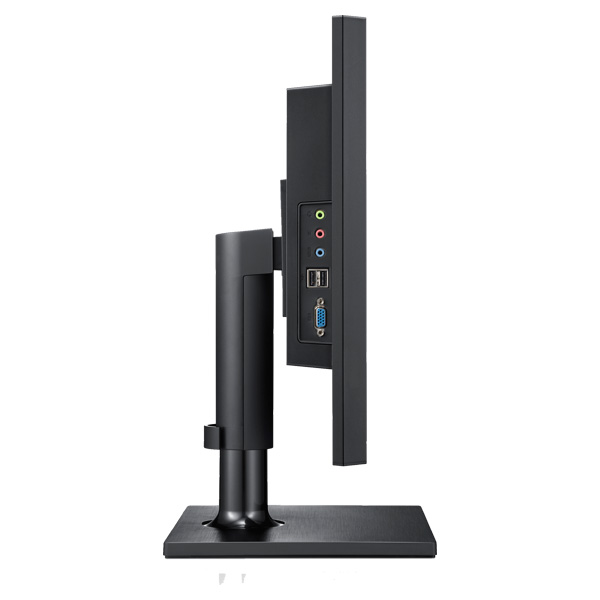

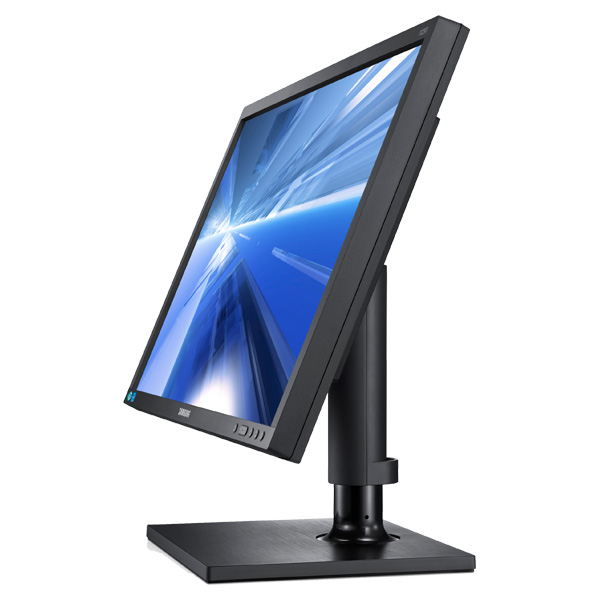

A slim design integrates the latest Thin Client technology. A tilt/pivot/height/swivel-adjustable stand that houses cables to minimize clutter. VESA-compatibility provides flexible installation on walls or arm mounts.
Functional Expandability
Four USB 2.0 ports offer wide connectivity. A DVI-I output can be used to drive a second display and expand the UI landscape. Integrated stereo speakers enhance the multimedia experience. Enjoy corporate cloud access or a monitor for locally attached notebooks via Integrated VGA Input.
Specifications:
| Samsung TC241W - 24& TC Series Thin Client Display Specifications | |
|---|---|
| System | |
| Processor | AMD Ontario 1.0GHz Dual |
| System Memory | SSD 16GB |
| OS | Windows Embedded Standard 7, Service Pack 1 - 32 Bit (WES 7 SP1 32 Bit) |
| VDI Certifications | VMware View 5.11 |
| Memory | DDR3 2GB (WES7), 1 ea. |
| Ethernet | 10/100/1G Ethernet (RJ45) |
| Graphics | AMD Radeon HD6290 |
| Software | |
| Client Support | Microsoft RDP 7 with RemoteFX, Citrix ICA/HDX 12.3, VMware View 5.11, Internet Explorer 8 (IE 8), Media Player 12, Enhanced Write Filter (EWF), File-Based Write Filter (FBWF) |
| Remote Management | MagicRMS Pro |
| Panel | |
| LCD Size | 23.6" |
| Pixel Pitch (H x V) | 0.2715 x 0.2715 mm |
| Response Time | 5 ms (white to white) |
| Panel Type | a-Si TFT active matrix |
| Brightness (Typical) | 300 cd/m2 |
| Colors Supported | 16.7 million |
| Aspect Ratio | 16:9 |
| Contrast Ratio (Typical) | 1000:1 |
| Ergonomics | Swivel -45° ~ 45°/ Pivot 0° ~ 90°/ Tilt -2° ~ 25° Height Adjustable 100mm |
| Resolution | 1920 x 1080 (Dual Screen) 1920 x 1200 |
| Viewing Angle (Horizontal/Vertical) | 170° / 160° (CR≥10), 178° / 170° (CR≥5) |
| Frequency (Horizontal / Vertical) | 31~80 kHz / 56~75 Hz |
| General | |
| Typical | 49W |
| Maximum | 32W |
| Stand-By | Less than 1.3W |
| Color | |
| Color | Black |
| OSD Language | |
| OSD Language | Korean / Japanese / Chinese / English / German / Spanish / French / Italian / Swedish / Russian / Portuguese / Turkish / Hungarian / Polish |
| Accessory (Optional) | |
| Accessory | User Manual, Power Cord, Quick Setup Guide, Warranty Card (included) |
| Speaker | |
| Speaker | 1W x 2 |
| Wall Mount | |
| Wall Mount | VESA 100 x 100 |
| Dimensions | |
| Product Dimensions With Stand | 21.8" (W) x 15.0" (H) x 8.8" (D) |
| Product Dimensions Without Stand | 21.8" (W) x 13.0" (H) x 2.4" (D) |
| Shipping Dimensions (W x H x D) | 24.6" x 15.7" 7.7" |
| Weight | |
| Product Weight | 13.4 lbs. |
| Shipping Weight (Lb.) | 16.8 lbs. |
| Connectivity | |
| Display Output | DVI-I Out |
| USB | 4 |
| VGA | VGA-IN (15 pin D-SUB In) |
| RJ45 | Yes |
| MIC | MIC In |
| Audio | Realtek ALC262 |
| Headphone | Headphone Out |
| Warranty | |
| 36 Months Parts and Labor | Yes |
